Your handy all-in-one manifold.

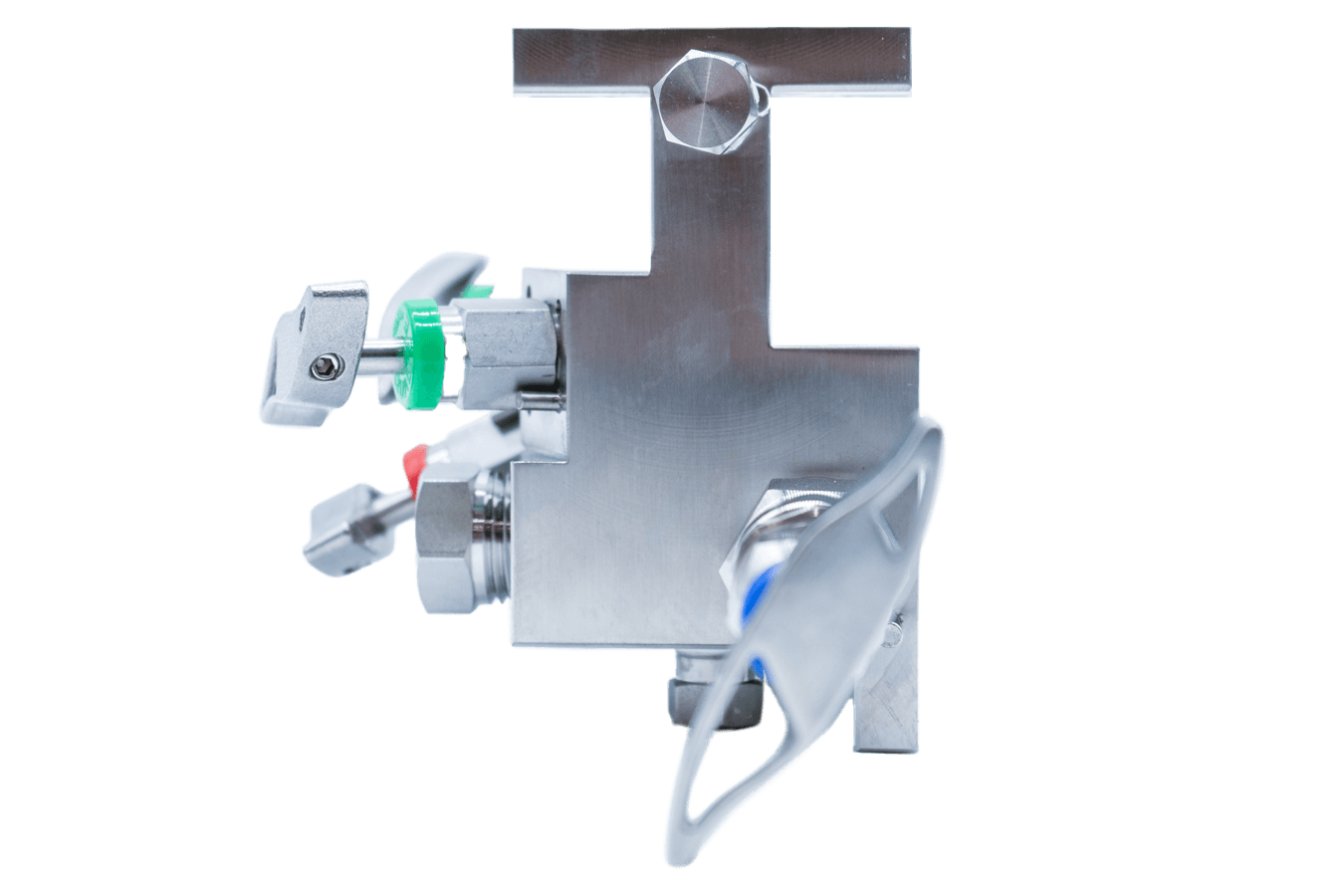

The Axis 5-valve manifold features a natural gas design with two isolate valves, two angled equalizer valves, and one angled vent valve for pinch-free operation. This manifold is also designed with a near-to-shape forged body, two-piece stem, non-rotating needle, and stem seals engineered to provide a bubble-tight seal. Our direct mount five-valve manifold system eliminates the need for separate tubes, valves, and fittings. Everything you need is integrated into a single, factory-tested assembly.
No items found.
5-Valve Manifolds
Get the 5-valve manifolds you need to succeed.
5-Valve Manifolds Features & Benefits
- 100% testing ensures blowout-proof stem and seat tightness in your natural gas design manifold
- Angled equalizer/vent valves provide ergonomic operation and eliminate pinch points
- Self-draining design with vent valve below equalizer prevents moisture trap in crossover pathways
- Two-piece stem and non-rotating needle design prolongs seat and packing life to ensure bubble-tight shutoff
- Near net shape forging provides for greater structural integrity of body and minimizes material waste
- Packing below stem threads prevents corrosion
- Stem threads formed by rolling provides improved strength and smooth operation
- Body-to-bonnet seal in compression isolates bonnet threads from process fluid to prevent corrosion and tensile breakage
- 90° valve features drain and rod out ports to relieve liquid and solid buildup associated with horizontal-to-vertical applications
- Dielectric isolation offering protects instrumentation from cathodic protection used in many natural gas applications
- Bodies and bonnets are lot code stamped to provide full material traceability
Available Models
At Axis Measurement, we carry a range of manifold valves to meet your custody transfer measurement needs. Each manifold valve is factory tested and available in multiple inlet/outlet types and materials. Get more information about each product configuration below and download the product catalog for all the technical details.
Sample Configurations
- 3/8” Orifice 5-Valve Manifold: AX6M5SPFLSSVZ
5-Valve Manifold
Brand
AX
Orifice
6: 3/8"
Type
M5S: Regular
MA5S: 90 Degree
Inlet Type
P: Female NPT
FL: 4-Bolt Flange
Outlet Type
P: Female NPT
FL: 4-Bolt Flange
CP: 4-Bolt Coplanar Flange
Material
SS: ASTM A182 Gr. 316
CS: ASTM A105
Packing
A: FEPM O Ring
V: FKM O Ring
Seat
D: POM Seat
P: PEEK Seat
Z: ETFE Seat
