Get the direct mount systems you need to succeed.
Direct Mount System Features & Benefits
- Designed to safely accommodate up to 150 ft/lb load
- Near net shape forging provides for greater structural integrity of body
- Dielectric isolation offering provides a non-conductive barrier
- Material traceability ensures compliance with NACE MR0175 / ISO 15156
- 100% testing ensures quality in forgings and material
- 304SS bolts are provided as standard
Available Models
At Axis Measurement, we carry a range of direct and remote mount manifolds to meet your measurement needs. Get more information about each product below, and download product specifications for all the technical details.
5 Valve Manifold
AX
6: 3/8"
M5S: Regular
MA5S: 90 Degree
P: Female NPT
FL: 4-Bolt Flange
P: Female NPT
FL: 4-Bolt Flange
CP: 4-Bolt Coplanar Flange
SS: ASTM A182 Gr. 316
CS: ASTM A105
M5S: Regular
MA5S: 90 Degree
D: POM Seat
P: PEEK Seat
Z: ETFE Seat
Available Models

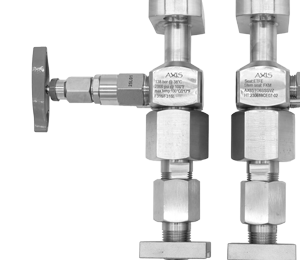

Stabilized Connectors with Integral Isolate Valve
AX
6: 3/8"
ST6S: Regular
STO6S: Integral O Ring
STX6S: 1 Piece Multi-Tapped
SS: ASTM A182 Gr. 316
CS: ASTM A105
A: FEPM O Ring
V: FKM O Ring
D: POM Seat
P: PEEK Seat
Z: ETFE Seat
Available Models
Stabilized Futbols
AX
6: 3/8"
ST: Regular
S: Short 5" OAL
L: Long 7.36" OAL
SS: ASTM A182 Gr. 316
CS: ASTM A105
Available Models
DP Adapter Bars
AX
3: 3/16"
6: 3/8"
DDP: Dual DP Adapter
DGP6S: DP to GP Adapter
FL: 4-Bolt Flange
FL: 4-Bolt Flange
SS: ASTM A182 Gr. 316
A: FEPM O Ring
D: POM Seat
