For secure and stable stand-offs.
Get the manifold stabilizers you need to succeed.
Manifold Stabilizer Features & Benefits
- 100% testing ensures seat and seal tightness.
- Two-piece stem featuring non-rotating needle design prolongs seat and packing life to ensure bubble-tight shutoff.
- Near net shape forging ensures greater structural integrity of body.
- Packing below stem threads prevents corrosion.
- Stem threads formed by rolling provides improved strength and smooth operation.
- Body-to-bonnet seal in compression isolates bonnet threads from process fluid to prevent corrosion and tensile breakage.
- Dielectric isolation offering protects instrumentation from cathodic protection used in many natural gas applications.
- Bodies and bonnets are lot code stamped to provide full material traceability.
- 316SS manifold materials meet NACE MR0175 / ISO 15156.
- Bolts are provided as standard with all stabilizer sets.
Available Models
At Axis Measurement, we carry manifold stabilizer options to meet your measurement needs. Get more information about each product below, and download product specifications for all the technical details.

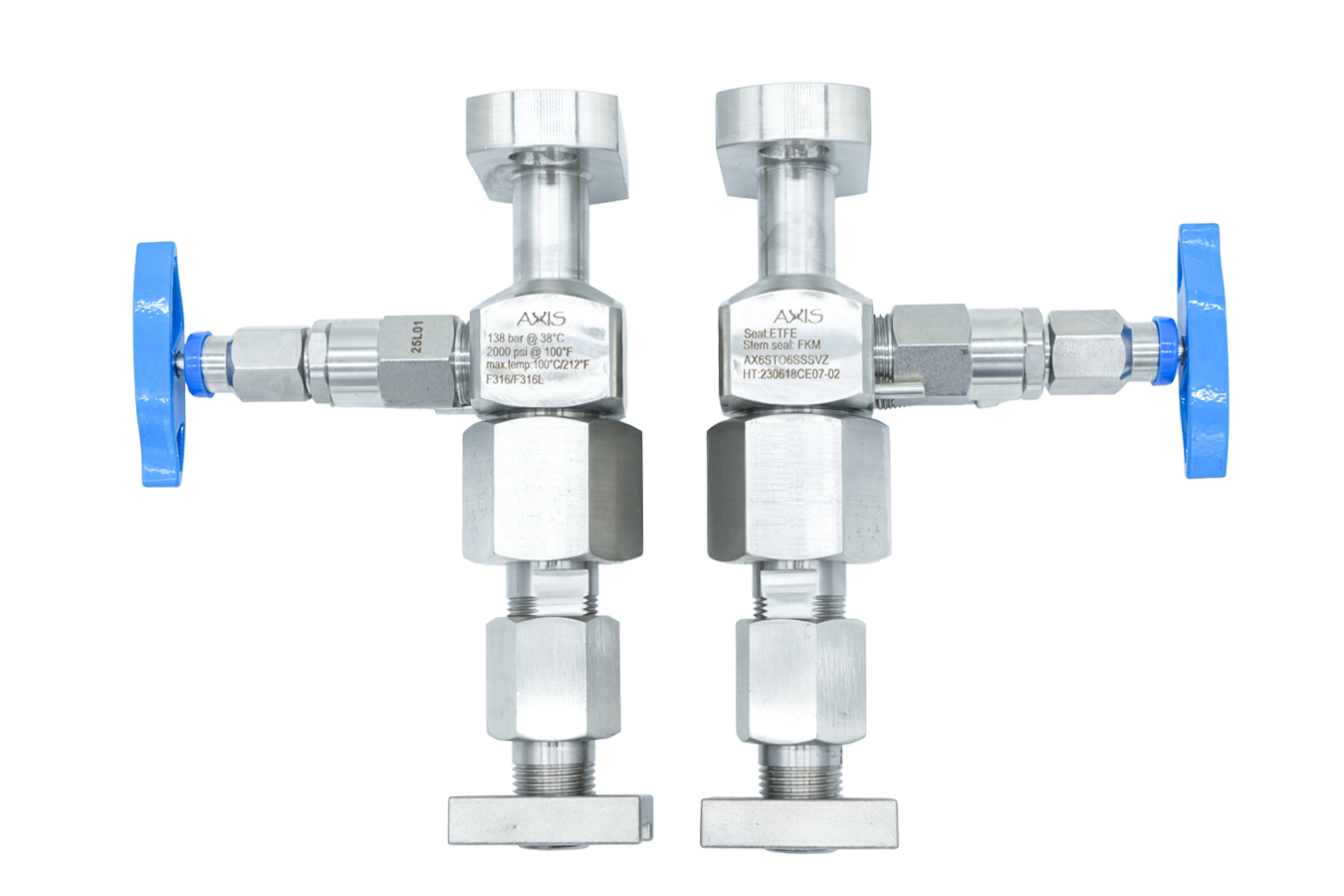

Manifold Stabilizer (2-Piece Body)
AX
AX6STO6SXXXX
3/8”
POM, PEEK seat: 6000 psi at 100°F, 414 bar at 38°C
ETFE seat: 2000 psi at 100°F, 138 bar at 38°C
Non-rotating
1/2” female NPT
2-bolt flange
O-ring, FEPM, or FKM
Soft seat, POM, ETFE, PEEK
Removable
Forging
Single unit: ~3 lb. 7 oz. (1.56 kg)
Pair: ~6 lb. 14 oz. (3.12 kg)

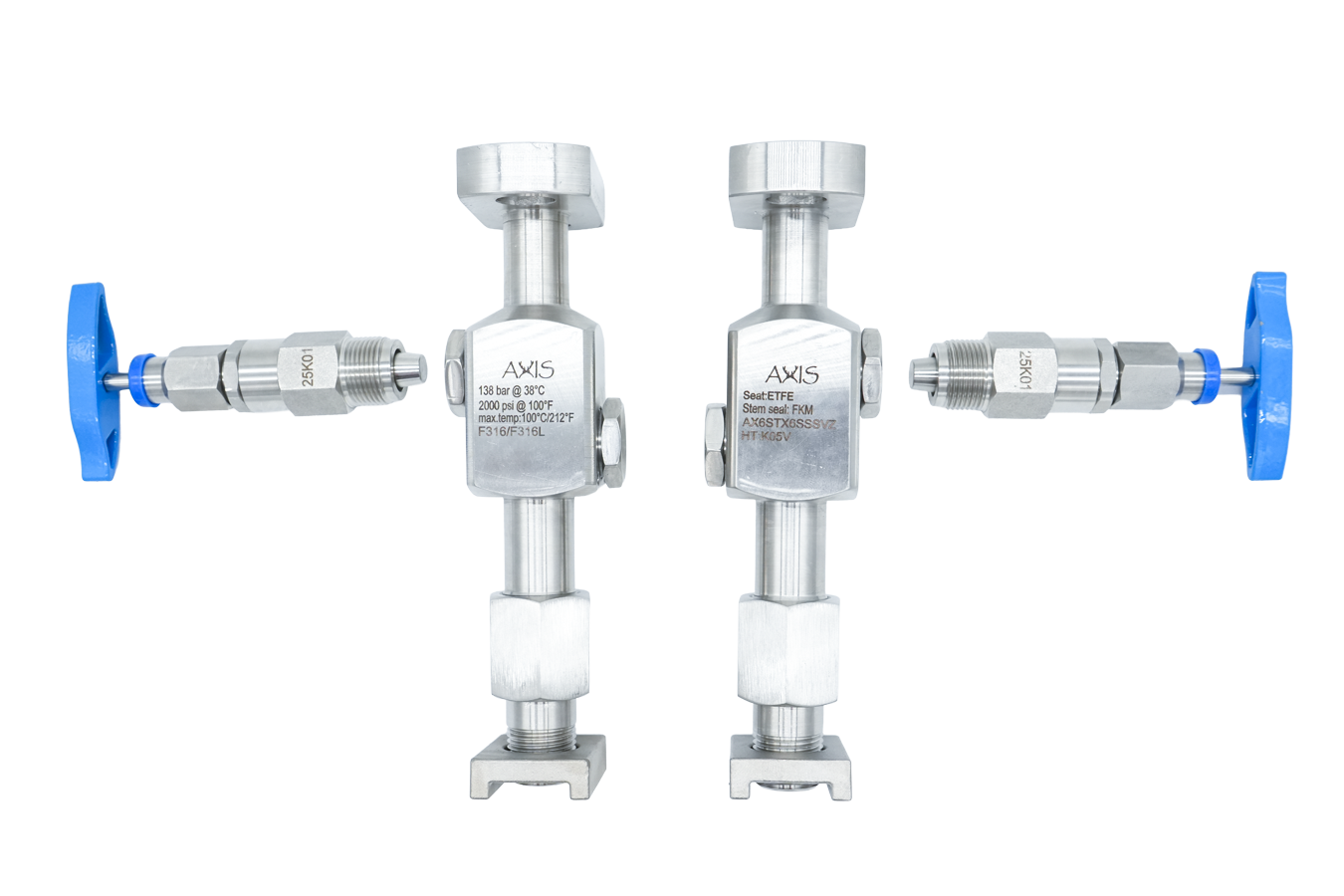

Manifold Stabilizer (1-Piece Body)
AX
AX6STX6SXXXX
3/8”
POM, PEEK seat: 6000 psi at 100°F, 414 bar at 38°C
ETFE seat: 2000 psi at 100°F, 138 bar at 38°C
Non-rotating
1/2” female NPT
2-bolt flange
O-ring, FEPM, or FKM
Soft seat, POM, ETFE, PEEK
Removable
Forging
Single unit: ~3 lb. 7 oz. (1.56 kg)
Pair: ~6 lb. 14 oz. (3.12 kg)

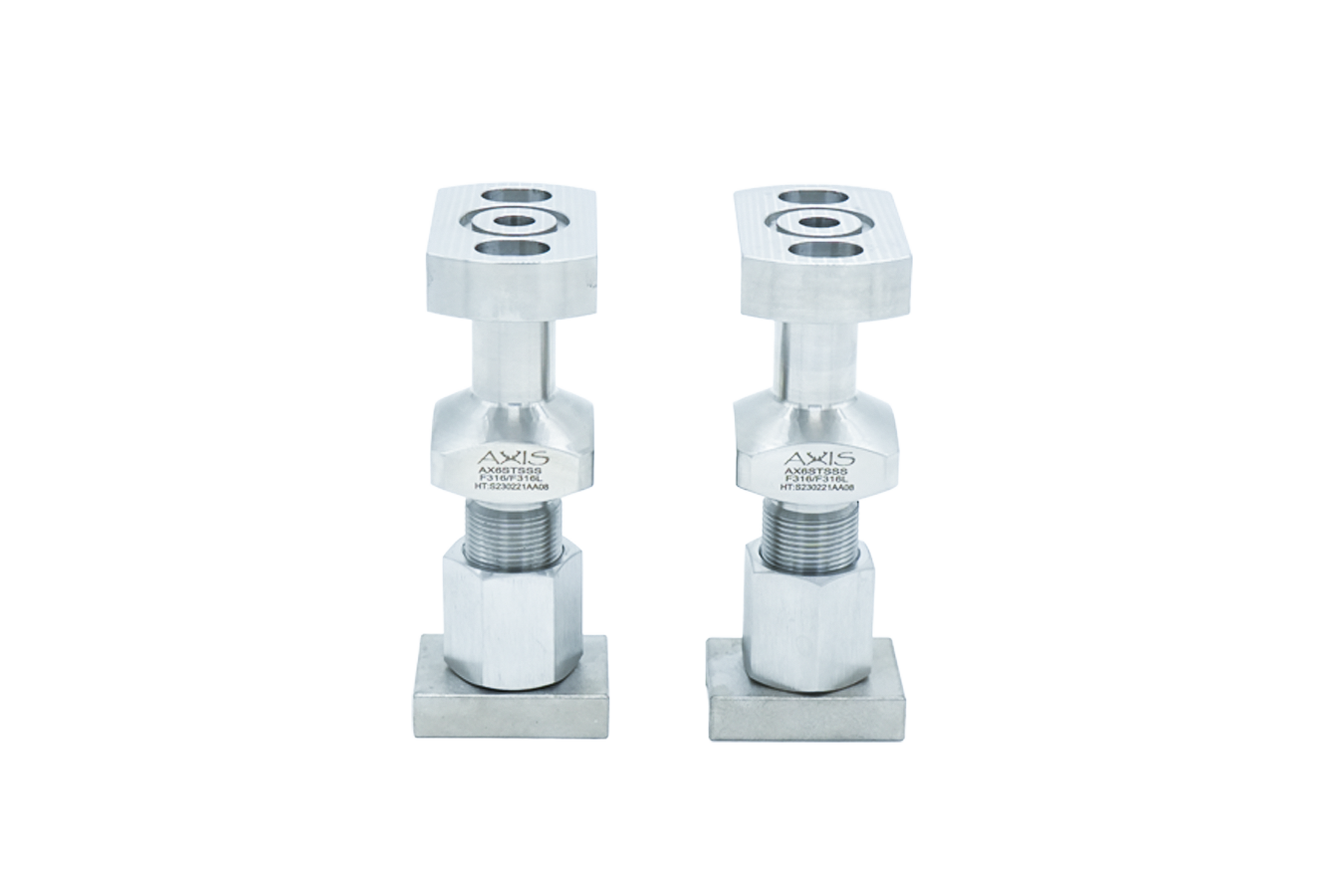

Stabilized Futbols
AX
AX6STLSSXXXX
6: 3/8”
ST: Regular
S: Short 5” OAL
L: Long 7.36” OAL
SS: ASTM A182 Gr. 316
CS: ASTM A105
1/2” male NPT
2-bolt flange
